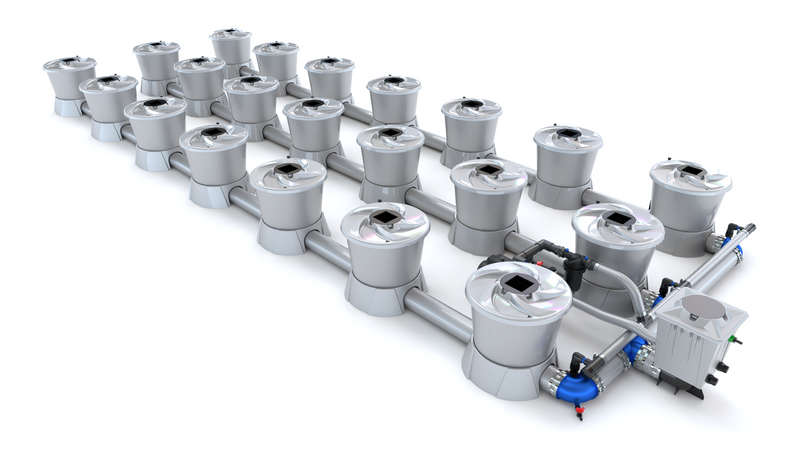

Alien North America V-SYSTEM 21 Pot 3 Row Kit
Roll over image to zoom in Click on image to zoom
Alien North America V-SYSTEM 21 Pot 3 Row Kit

Alien North America V-SYSTEM 21 Pot 3 Row Kit

Save $2,200.00
Alien North AmericaSKU: BD100-0321
Price:
$6,599.00 $8,799.00
 More payment options

Description

Alien North America V-SYSTEM 20 Pot 2 Row Kit

Key V-SYSTEM Benefits

  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

Key V-SYSTEM Features

  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump

V-SYSTEM 21 Pot 3 Row Kit
Technical Information

Number of pots: 21
Number of rows: 3

Kit total fluid volume: 342.9 gallons (1298 L)

Minimum assembled size (can space pots more widely for a larger footprint):
Length: 14' 0.1" (168.1 inches / 4270 mm)
Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
Wattage: 1500 watts
Flow Rate: 5944 gal/hr (22500 L/hr)

Recommended water chiller minimum capacity: 528 gallons (2000 L)

Kit Technical Drawing
Kit Assembly Instructions

The V-SYSTEM 21 Pot 3 Row Kit Includes

1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
21x V-Pot 58L
21x V-Pot Base
21x V-Pot Lid
21x V-Pot Lid Inspection Cover
21x Square Net Pot
21x V-Pot Clip
21x Air Filter for V-SYSTEM Venturi, 6mm
21x Silencer for Venturi
21x Venturi Air Inlet Pipe 6mm Blue (2X 4")
22x Nut 5"
22x Washer 5" Green Silicone
50x 5" Stainless Steel Clamp
1x Distribution Tee 50mm
3x DM Push-Fit Elbow 28mm V-SYSTEM
21x DM Push-Fit Tee 28-15mm V-SYSTEM
1x Drain Tap 1/2"-16mm Barb
2x Elbow 5" Barbed with Drain Point
4x Elbow 5" Threaded Dual-Flow
1x Float Valve
1x V-SYSTEM Header Pot 20L 50mm
1x Silver Lid
1x Header Pot Blank
1x Hosetail 16mm-3/4" Female Green
21x Pipe 28mm White Rigid 100cm Piece
5x Pipe 50mm Silver 100cm Piece
23x Pipe 5" Silver Spiral 80cm Piece
2x Tee 5" Barbed
18x Tee Threaded 5" Dual-Flow
2x Threaded Tank Connector 1"
1x Vortex Pump Inlet Manifold 50mm
2x 1" Cap for Chiller Connections
1x Elbow 50mm Barbed
1x Terminal Manifold Left 50mm
1x Terminal Manifold Center 50mm
1x Terminal Manifold Right 50mm
54x 28mm Insert for 28mm Rigid Pipe
3x 28mm Push-Fit Stop End
12x Clamp Size 4
1x 8mm Screwdriver for 5" Clamp
1x Wrench 5"
1x Wrench for Float Valve
1x 8mm Socket for 5" Clamp
1x Pipe Cutter 50mm
6x Silicone Grease - Food Grade
